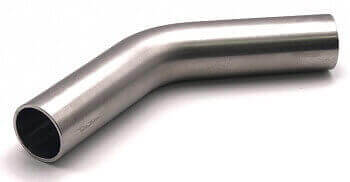

The Cardinal UHP 45-Degree Elbow (3WW) is designed for ultra-high purity applications, providing a smooth and clean internal surface to minimize particle generation and contamination. This precision-engineered fitting is ideal for use in semiconductor, pharmaceutical, and high-purity gas systems. The 45-degree angle allows for efficient directional changes in tubing systems while maintaining flow integrity. Available in multiple sizes, the 3WW elbow meets strict industry standards for high-purity performance.
| Dimensions |
Material
(Process Tube) |
Technical
Specifications |
Part
Number
(add Tech Spec__ to end)
example: 3WW04T50 |

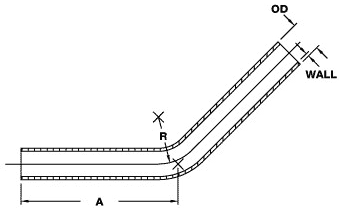

| OD |
Wall |
A |
R |
Tech
10 |
Tech
20 |
Tech
50 |
|
| 0.25 |
0.035 |
2 |
0.62 |
316L SS SMLS |
• |
• |
• |
3WW04T_ |
| 0.375 |
0.035 |
2 |
1 |
316L SS SMLS |
• |
• |
• |
3WW06T_ |
| 0.5 |
0.049 |
2.25 |
1.13 |
316L SS SMLS |
• |
• |
• |
3WW08T_ |
| 0.75 |
0.065 |
2.25 |
1.13 |
316L SS SMLS |
• |
• |
• |
3WW12T_ |
| 1 |
0.065 |
2.25 |
1.5 |
316L SS SMLS |
• |
• |
• |
3WW16T_ |
| 1.5 |
0.065 |
2.5 |
2.25 |
316L SS WLD |
• |
• |
• |
3WW24T_W |
| 2 |
0.065 |
3 |
3 |
316L SS WLD |
• |
• |
• |
3WW32T_W |
| 3 |
0.065 |
3.625 |
4.5 |
316L SS WLD |
• |
•
|
•
|
3WW48T_W |
| 4 |
0.083 |
4.5 |
6.0 |
316L SS WLD |
•
|
•
|
•
|
3WW64T_W |
