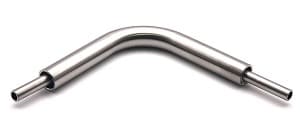

The AMETEK Cardinal UHP Coaxial 90-Degree Elbow Fitting is designed for ultra-high purity applications, providing reliable, contamination-free gas and chemical flow in tight spaces. Made from 316L stainless steel, this fitting offers superior corrosion resistance and is ideal for industries such as semiconductor manufacturing, pharmaceuticals, and chemical processing.
| Dimensions |
Material
(Process Tube) |
Technical
Specifications |
Part
Number
(add
Tech Spec__ to end)
example: X2WW0408T50 |
|
Process
|
Contain
|
A |
B
|
Tech
10 |
Tech
20 |
Tech
50 |
| OD |
Wall |
OD |
Wall |
|
| 0.25 |
0.035 |
0.5 |
0.049 |
3 |
4 |
316L SS SMLS |
• |
• |
• |
X2WW0408T_ |
| 0.375 |
0.035 |
0.625 |
0.049 |
3 |
4 |
316L SS SMLS |
• |
• |
• |
X2WW0610T_ |
| 0.5 |
0.049 |
0.75 |
0.065 |
3 |
4 |
316L SS SMLS |
• |
• |
• |
X2WW0812T_ |
| 0.75 |
0.065 |
1 |
0.065 |
2.2 |
3.2 |
316L SS SMLS |
• |
• |
• |
X2WW1216T_ |
| 1 |
0.065 |
1.25 |
0.065 |
2.5 |
4 |
316L SS SMLS |
• |
• |
• |
X2WW1620T_ |
