Reducing Tee (7RWWW)

The Cardinal UHP Reducing Tee (7RWWW) is a high-performance fitting designed for ultra-high purity applications, allowing for a smooth transition between different tubing sizes while maintaining low particle generation and contamination control. With its precision-engineered construction, the reducing tee is suitable for semiconductor, pharmaceutical, and high-purity gas systems. This fitting provides reliable connections at the branch point of tubing systems and meets stringent industry standards for purity and performance.

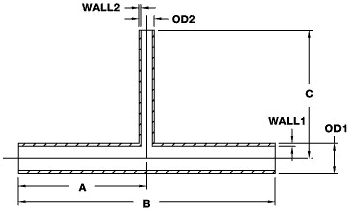

Reducing Tee Fitting

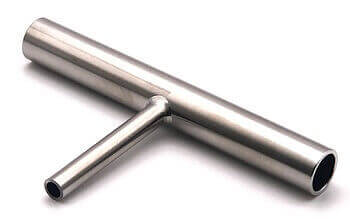

Reducing Tee


Dimensions Material Technical Specifications Part Number
(add Tech Spec__ to end)
example: 7RWWW0408T50
OD1
OD2
Wall1
 Wall2 A
B
 C Tech
10		 Tech
20		 Tech
50
0.375 0.25 0.035 0.035 1.75 3.5 1.75 316L SS SMLS • • • 7RWWW0604T_
0.5 0.25 0.049 0.035 1.875 3.75 1.875 316L SS SMLS • • • 7RWWW0804T_
0.5 0.375 0.049 0.035 1.875 3.75 1.875 316L SS SMLS • • • 7RWWW0806T_
0.75 0.25 0.065 0.035 2 4 2 316L SS SMLS • • • 7RWWW1204T_
0.75 0.375 0.065 0.035 2 4 2 316L SS WLD • • • 7RWWW1206T_
0.75 0.5 0.065 0.049 2 4 2 316L SS SMLS • • • 7RWWW1208T_
1 0.25 0.065 0.035 2.125 4.25 2.125 316L SS SMLS • • • 7RWWW1604T_
1 0.375 0.065 0.035 2.125 4.25 2.125 316L SS SMLS • • • 7RWWW1606T_
1 0.5 0.065 0.049 2.125 4.25 2.125 316L SS SMLS • • • 7RWWW1608T_
1 0.75 0.065 0.065 2.125 4.25 2.125 316L SS SMLS • • • 7RWWW1612T_
1.5 0.5 0.065 0.049 2.375 4.75 2.375 316L SS WLD • • • 7RWWW2408T_W
1.5 0.75 0.065 0.065 2.375 4.75 2.375 316L SS WLD • • • 7RWWW2412T_W
1.5 1 0.065 0.065 2.375 4.75 2.375 316L SS WLD • • • 7RWWW2416T_W
2 0.5 0.065 0.049 2.875 5.75 2.625 316L SS WLD • • • 7RWWW3208T_W
2 0.75 0.065 0.065 2.875 5.75 2.625 316L SS WLD • • • 7RWWW3212T_W
2 1 0.065 0.065 2.875 5.75 2.625 316L SS WLD • • • 7RWWW3216T_W
2 1.5 0.065 0.065 2.875 5.75 2.625 316L SS WLD • • • 7RWWW3224T_W
3 1 0.065 0.065 3.375 6.75 3.125 316L SS WLD • • • 7RWWW4816T_W
3 1.5 0.065 0.065 3.375 6.75 3.125 316L SS WLD • • • 7RWWW4824T_W
3 2 0.065 0.065 3.375 6.75 3.125 316L SS WLD • • • 7RWWW4832T_W
4 1 0.083 0.065 4.125 8.25 3.625 316L SS WLD • • • 7RWWW6416T_W
4 1.5 0.083 0.065 4.125 8.25 3.625 316L SS WLD
 •
 •
 •
 7RWWW6424T_W

4 2 0.083 0.065 4.125 8.25 3.875 316L SS WLD • • • 7RWWW6432T_W
4 3 0.083 0.065 4.125 8.25 3.875 316L SS WLD • • • 7RWWW6448T_W
6 0.5 0.109 0.49 5.62 11.25 4.875 316L SS WLD • • • 7RWWW9608T_W
6 0.75 0.109 0.065 5.62 11.25 4.875 316L SS WLD • • • 7RWWW9612T_W
6 1 0.109 0.065 5.62 11.25 4.875 316L SS WLD • • • 7RWWW9616T_W
6 1.5 0.109 0.065 5.62 11.25 4.875 316L SS WLD • • • 7RWWW9624T_W
6 2 0.109 0.065 5.62 11.25 4.875 316L SS WLD • • • 7RWWW9632T_W
6 3 0.109 0.065 5.62 11.25 4.875 316L SS WLD • • • 7RWWW9648T_W
6 4 0.109 0.083 5.62 11.25 5.625 316L SS WLD • • • 7RWWW9664T_W
