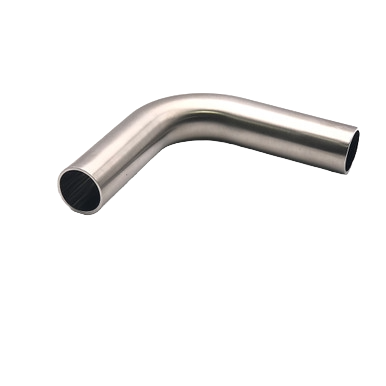

The Cardinal UHP 90-Degree Elbow (2WW) is a precision-engineered fitting designed for ultra-high purity applications. It features smooth, clean internal surfaces that ensure low particle generation and minimal contamination. The elbow is available in various sizes and meets stringent industry standards, making it ideal for use in semiconductor, pharmaceutical, and high-purity gas systems. Its 90-degree angle allows for directional changes in piping without compromising flow integrity or purity.
Dimensions
|
Material |
Technical
Specifications |
Part
Number
(add Tech Spec__ to end)
example: 2WW04T50 |
| OD |
Wall |
A |
R |
Tech
10 |
Tech
20 |
Tech
50 |
|
| 0.25 |
0.035 |
2.63 |
0.62 |
316L SS SMLS |
• |
• |
• |
2WW04T_ |
| 0.375 |
0.035 |
2.63 |
1 |
316L SS SMLS |
• |
• |
• |
2WW06T_ |
| 0.5 |
0.049 |
3 |
1.13 |
316L SS SMLS |
• |
• |
• |
2WW08T_ |
| 0.75 |
0.065 |
3 |
1.13 |
316L SS SMLS |
• |
• |
• |
2WW12T_ |
| 1 |
0.065 |
3 |
1.5 |
316L SS SMLS |
• |
• |
• |
2WW16T_ |
| 1.5 |
0.065 |
3.75 |
2.25 |
316L SS WLD |
• |
• |
• |
2WW24T_W |
| 2 |
0.065 |
4.75 |
3 |
316L SS WLD |
• |
• |
• |
2WW32T_W |
| 3 |
0.065 |
6.25 |
4.5 |
316L SS WLD |
• |
• |
• |
2WW48T_W |
| 4 |
0.083 |
8 |
6 |
316L SS WLD |
• |
• |
• |
2WW64T_W |
| 6 |
0.109 |
11.5 |
9 |
316L SS WLD |
• |
• |
• |
2WW96T_W |
