The Cardinal UHP Equal Tee (7WWW) is a precision-engineered fitting designed for ultra-high purity applications, allowing equal distribution of flow across all three connections. With its smooth internal surfaces, this fitting ensures minimal particle generation and contamination control, making it ideal for use in semiconductor, pharmaceutical, and high-purity gas systems. The 7WWW equal tee meets strict industry standards, ensuring reliable performance in critical environments.

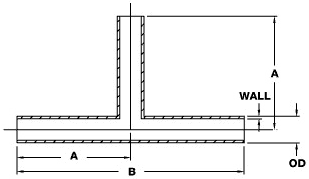

| Dimensions |
Material |
Technical
Specifications |
Part
Number
(add Tech Spec__ to end)
example: 7WWW04T50 |
|
OD
|
Wall
|
A
|
B |
Tech
10 |
Tech
20 |
Tech
50 |
|
| 0.25 |
0.035 |
1.75 |
3.5 |
316L SS SMLS |
• |
• |
• |
7WWW04T_ |
| 0.375 |
0.035 |
1.75 |
3.5 |
316L SS SMLS |
• |
• |
• |
7WWW06T_ |
| 0.5 |
0.049 |
1.875 |
3.75 |
316L SS SMLS |
• |
• |
• |
7WWW08T_ |
| 0.75 |
0.065 |
2 |
4 |
316L SS SMLS |
• |
• |
• |
7WWW12T_ |
| 1 |
0.065 |
2.125 |
4.25 |
316L SS SMLS |
• |
• |
• |
7WWW16T_ |
| 1.5 |
0.065 |
2.375 |
4.75 |
316L SS WLD |
• |
• |
• |
7WWW24T_W |
| 2 |
0.065 |
2.875 |
5.75 |
316L SS WLD |
• |
• |
• |
7WWW32T_W |
| 3 |
0.065 |
3.375 |
6.75 |
316L SS WLD |
• |
• |
• |
7WWW48T_W |
| 4 |
0.083 |
4.125 |
8.25 |
316L SS WLD |
• |
• |
• |
7WWW64T_W |
| 6 |
0.109 |
5.625 |
11.25 |
316L SS WLD |
• |
• |
• |
7WWW96T_W |
