Coaxial 45° Elbow (X3WW)

Electropolished, passivated & corrosion resistant coaxial 45° Elbow fittings made of seamless 316L stainless steel that can be used for a variety of general & ultra-high purity Gas Distribution Systems such as Analyzer Lines, O2 Piping (CFOS), Inert Bulk Gas Service, Compressed Dry Air, Vent Lines and more as per the industry requirements.

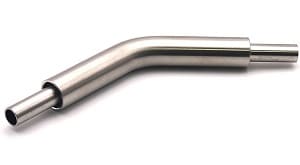

Coaxial 45 degree Elbow Fitting

Coax 45 degree elbow


Dimensions Material

(Process Tube)
Technical Specifications Part Number
(add Tech Spec__ to end)
example: X3WW0408
T50
Process
Contain
A
B
Tech
CM
Tech
10
Tech
20
Tech
50
OD Wall OD Wall
0.25 0.035 0.5 0.049 2.25 3.25 316L SS SMLS
X3WW0408T_
0.375 0.035 0.625 0.049 2.25 3.25 316L SS SMLS
X3WW0610T_
0.5 0.049 0.75 0.065 2.25 3.25 316L SS SMLS
X3WW0812T_
0.75 0.065 1 0.065 2.25 3.25 316L SS SMLS
X3WW1216T_
1 0.065 1.25 0.065 2.25 3.75 316L SS SMLS
X3WW1620T_
1.5 0.065 2 0.065 5.12 7.12 316L SS WLD
X3WW2432T_W
2 0.065 2.5 0.065 5.25 7.25 316L SS WLD
X3WW3240T_W
