EP Coil - Tech 50CR
|
|
Non EP Coil - Tech CMCR, 10CR & 20CR
|
Electropolished tubing in long continuous coils:
|
|
High purity tubing in long continuous coils:
|
- Fewer
Welds
- Quicker
Installation
- On-Time
Delivery
- Easy
Validation with On-Line MTRs
- World-Class
Quality Assurance
- 1/8",
1/4", 3/8", and 1/2" Seamless Tubing
- Reduced
Start-Up Dry-Down Time
-
Jumper and Purge Lines
|
|
- Fewer
Welds
- Quicker
Installation
- On-Time
Delivery
- Easy
Validation with On-Line MTRs
- World-Class
Quality Assurance
- 1/8",
1/4", 3/8", and 1/2" Seamless Tubing
- Reduced
Start-Up Dry-Down Time
|
|

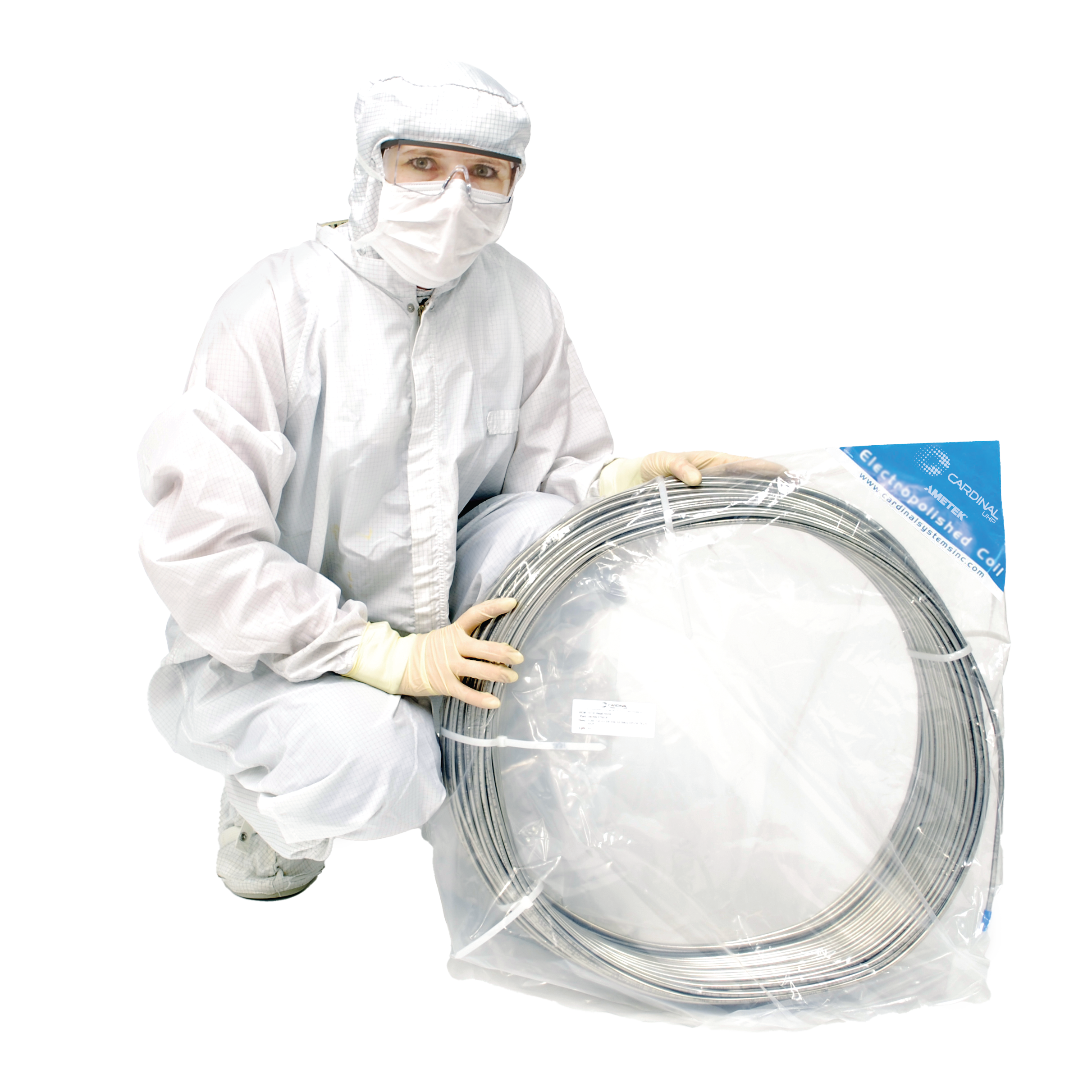

Cardinal Electropolished Coil is constructed from seamless 316L stainless steel for excellent corrosion resistance and good weldability. All Electropolished Coil is marked for traceability.Cardinal’s unyielding commitment to quality is evident in every step of our manufacturing process. Electropolished Coil is inspected by Cardinal’s highly trained inspectors, and produced in accordance with an ISO 9001:2000 registered quality management system. All Electropolished Coil is inspected, cleaned, packaged in a class 10 cleanroom, and always delivered on-time to you.Electropolished coil is also available in dual containment configurations up to 100' maximum.
|
|
Cardinal BA Coil is constructed from seamless 316L stainless steel for excellent corrosion resistance and good weldability. All BA Coil is marked for traceability and easily validated with our on-line MTRs.Cardinal’s unyielding commitment to quality is evident in every step of our manufacturing process. BA Coil is inspected by Cardinal’s highly trained inspectors, and produced in accordance with an ISO 9001:2000 registered quality management system.
|
| Specifications:
|
|
Specifications:
|
- Electropolished
to 10 µin / 0.25 µm Ra.
- 316L
SS tubing meets ASTM specifications for consistent physical,
dimensional and chemical composition.
- Controlled
sulfur content to insure consistent weldability and reduced
non-metallic inclusions.
- Final
cleaning and packaging performed in a Class 10 (ISO Class
4) cleanroom.
- 0.1
µ filtered 60°C DI water rinse.
- 0.005
µ filtered 120°C Nitrogen dried.
- Used
in ultra high purity gas, chemical distribution, and WFI
systems.
- Mill
Test Reports available on line at www.cardinaluhp.com
- Certificate
of Conformance.
Maximum
Lengths:
1/8" OD x 0.020" wall 100ft (30m)
1/4" OD x 0.035" wall 330ft (100m)
3/8" OD x 0.035" wall 330ft (100m)
1/2" OD x 0.049" wall 330ft (100m)
Dual Containment 100'
1/4"x1/2" Coax 330ft (100m)
6mm,
8mm, 10mm and 12mm diameter tubing is available on request.
|
|
- As low as 20µin / 0.50µm Ra ID
-
Seamless
316L SS meets ASTM specifications for
consistent physical, dimensional and chemical composition.
-
Controlled
sulfur content to insure consistent weldability and reduced
on-metalic inclusions.
- Coils
are single bagged and packaged to prevent damage during
shipment.
- Mill
Test Reports available on line at www.cardinaluhp.com
- Certificate
of Conformance
- NHO3
passivated
Maximum
Lengths:
1/8" OD x 0.020" wall 800ft (240m)
1/4" OD x 0.035" wall 1000ft (305m)
3/8" OD x 0.035" wall 1000ft (305m)
1/2" OD x 0.049" wall 800ft (240m)
6mm,
8mm, 10mm and 12mm diameter tubing is available on request.
|
